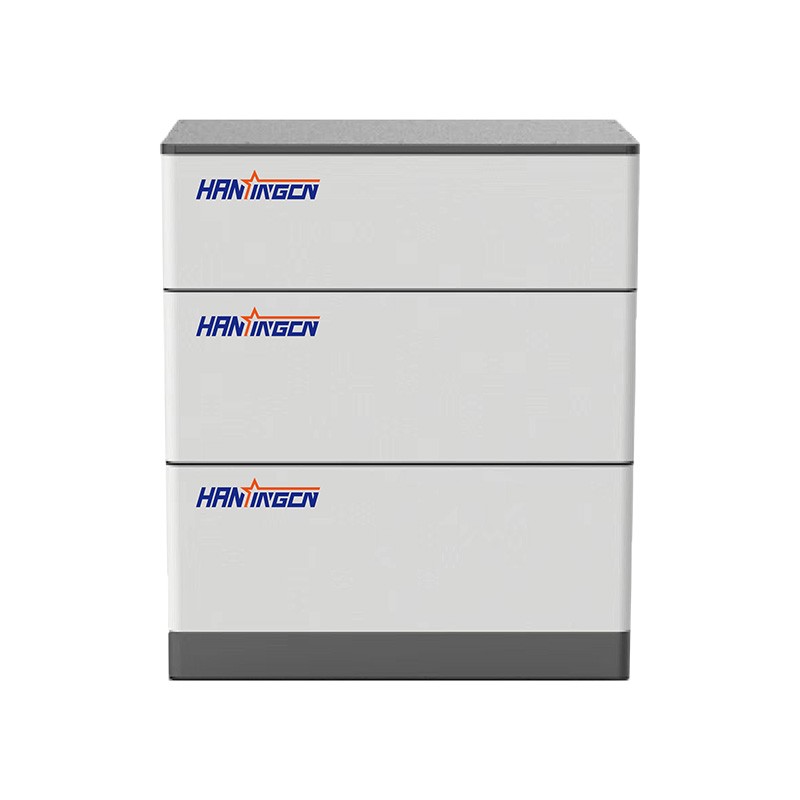

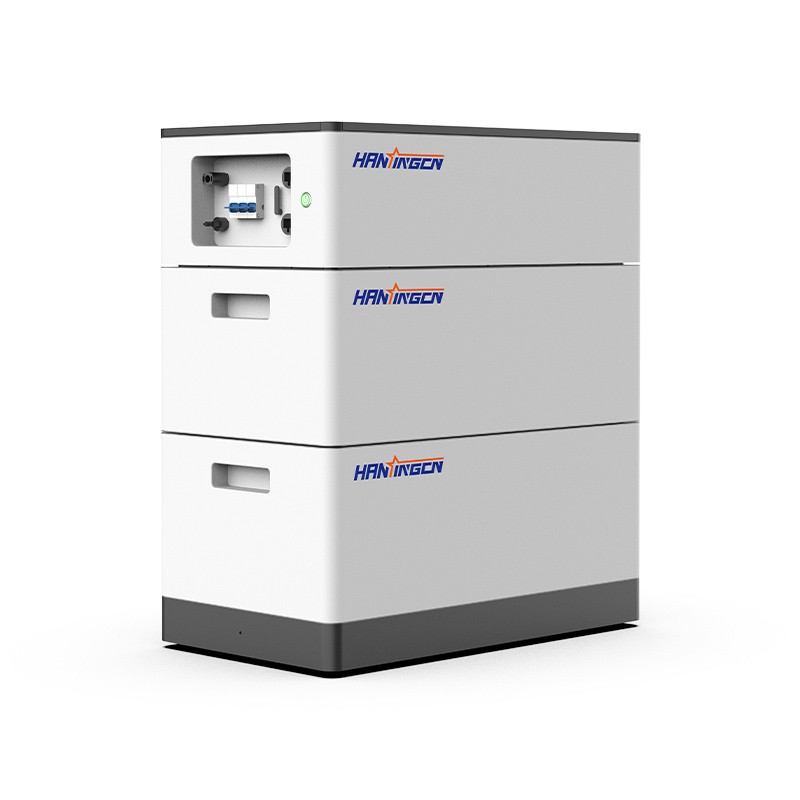

204.8 VXINGXI-H Series 10 kWh High Voltage LFP Battery
Product Description
Hanxingcn XINGXI-H series high-voltage LFP battery is a floor-standing lithium battery pack consisting of long-life LiFePO4 batteries and functional BMS. It can store and release electrical energy according to the requirements of the inverter controller. Mainly used in residential energy storage systems, but also in small commercial places.
Technical Parameter
| XINGXI-10-H | XINGXI-15-H | XINGXI-21-H | XINGXI-26-H | |
| System Data | ||||
| Battery Type | LFP | |||
| Battery Module | XINGXI-5000H: 102.4V 5.3 kWh | |||
| Number of Modules | 2 | 3 | 4 | 5 |
| Nominal Capacity | 10.6 kWh | 15.9 kWh | 21.2 kWh | 26.5 kWh |
| Usable Capacity | 9.54 kWh | 14.31 kWh | 19.08 kWh | 23.85 kWh |
| Nominal Voltage | 204.8 V | 307.2 V | 409.6 V | 512 V |
| Operating Voltage | 182.4~230.4 V | 273.6~345.6 V | 364.8~460.8 V | 456~576 V |
| Continuous Discharge Current | 26 A | |||
| Communication | CAN | |||
| General Data | ||||
| Weight | 120 kg | 172 kg | 224 kg | 276 kg |
| Dimensions (W×D×H) | 666×354×796 mm | 666×354×1078 mm | 666×354×1360 mm | 666×354×1641 mm |
| Operating Temperature | Charge: 0℃ to 50℃ / Discharge: -20℃ to 50℃ | |||
| Humidity | ≦ 95% | |||
| Altitude | ≦ 2000 m | |||
| Degree of Protection | IP54 (outdoor / indoor) | |||
| Mounting Method | Floor stand | |||
| Certificates | TÜV SÜD / CE / UN38.3 / MSDS | |||
Hanxingcn XINGXI-L Series Low Voltage LiFePO4 Battery starts at 5.12 kWh with each additional module offering an extra 5.12kWh. Each single tower can be stacked up to 6 layers.
Learn More
Hanxingcn XINGXI-H Series 15 kWh High Voltage LFP Battery is composed of 1 high voltage box and 3 battery modules that are connected in series.
Learn More
Hanxingcn XINGXI-H Series 21 kWh High Voltage LFP Battery are connected in series between modules without any cable connection.
Learn More
Hanxingcn XINGXI-H Series 26 kWh High Voltage LFP Battery in home PV storage systems mainly store the excess solar energy from PV system for use at night, protecting your home from power outages and helping to reduce dependence on the grid.
Learn More
Hanxingcn XINGXI-L Series Low Voltage Battery Systems are great for off-grid systems, and users looking for large capacity potential with a medium to low energy demand.
Learn More
Utilizing a modular stacking battery system can help reduce your power bills and protect your household from power outages by providing a continuous and reliable power supply.
Learn More
Hanxingcn 20ft battery container is a battery energy storage system (BESS) solution integrated with liquid cooling system technology.
Learn More
XINGXI all in one energy storage system aims to provide solutions for industrial and commercial application scenarios to ensure grid security, enhance renewable energy generation, and provide UPS backup to maintain normal power supply.
Learn More
